Margin: Our New Design Standards

We are releasing Margin, an open source visual system designed for web apps with high information density and users who need to move fast.

In designing Margin, we are unifying our many existing web apps with simple, reusable, and consistent design standards. We decided to implement Margin as a layer over bootstrap because it is easy for people with varying degrees of CSS experience to use, and many of our web apps are built with bootstrap already. Margin has all of the same class names that bootstrap uses, and it also includes custom typography and typographic elements, secondary and accent colors, borders, shadows, margins, padding, cards, holy grail layout support, a flexbox grid, and Belvedere’s login styles. It is compiled into a single margin.css file, or margin.min.css, for easily dropping into your project.

Designing a visual system to accommodate both trading software and internal tools presents several unique challenges. Our first priority was developing something that would allow users to be able to process large amounts of information quickly. Our design also needs to be both reconfigurable and easy to apply. Additionally, it needs to be able to accommodate the different amounts of information density on screen in our web apps. Our singular design standards have to account for an app that might have many information design-heavy views constrained within the parameters of the window, an app that primarily displays tabular data, and everything in between.

This means that we have made a few design decisions that make Margin different. Two examples of how we approach these challenges are our typographic strategy and our reconfigurable layout and grid system. Let’s take a look at the case studies, below:

Case Study: Typography

We began by examining existing research into which typeface people processed the most quickly. One of the more well-known studies in this area, which we took some of our cues from, was ‘Fortune Favors the Bold (and the Italicized): Effects of disfluency on educational outcomes’. The authors found that study participants processed information slowly and thoroughly with unfamiliar typefaces, and in many ways, our users need to do just the opposite: take in information at a glance.

With a newly discovered preference for familiar typefaces in mind, we then looked to existing design precedents related to speed. One fantastic example is the usage of the typeface DIN on many highways in Europe.

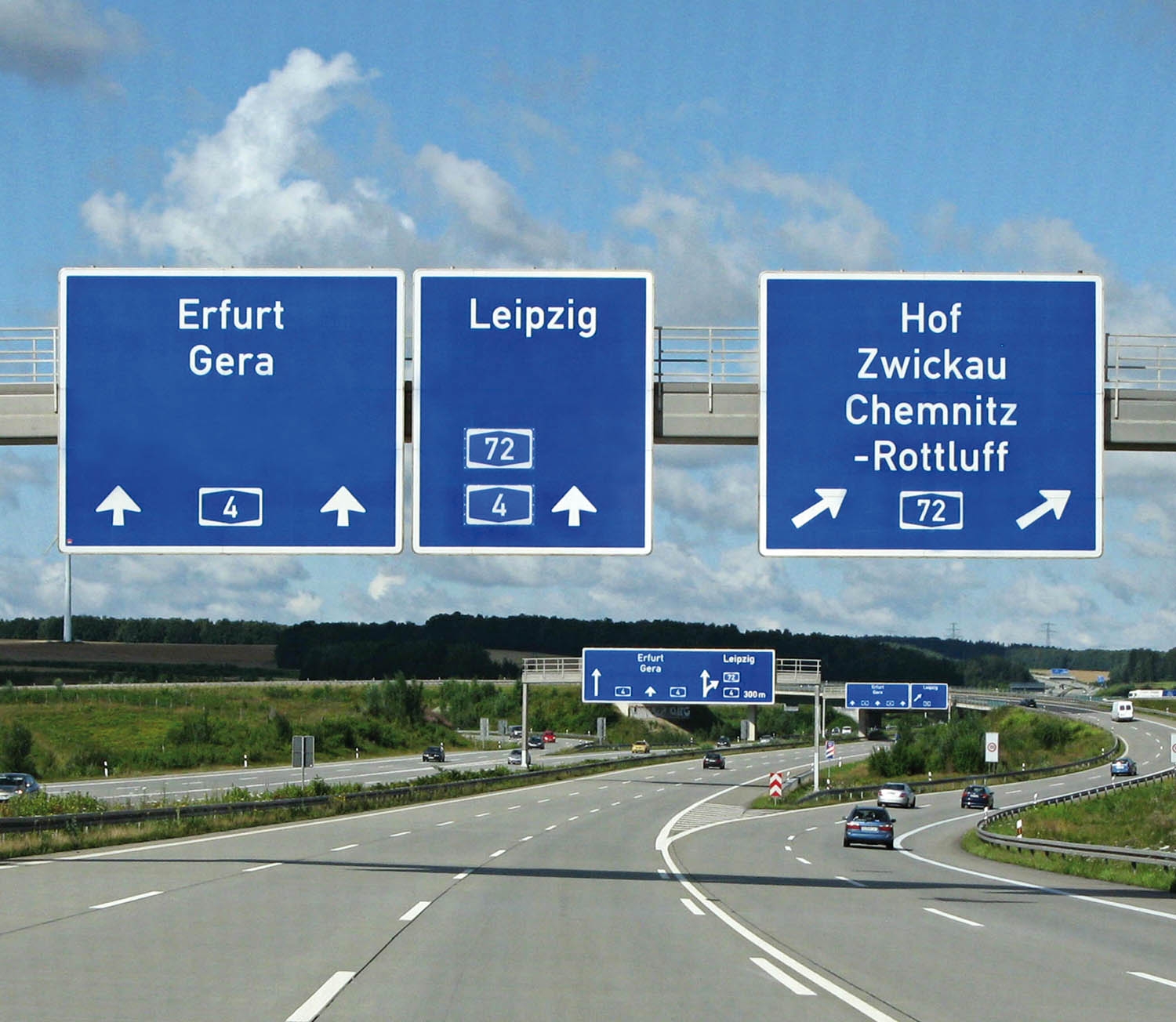

An example of DIN on a highway sign

An example of DIN on a highway sign

Originally designed for the German railway system in 1905, DIN was adopted by the German Institute of Standardization in the 1930’s and rapidly gained ubiquity. We also looked at Font Bureau’s Interstate, which is used on highways in America. After all, when you’re blitzing down the highway at warp speed, you need to process information on signage efficiently.

Given our intent to open source Margin, we had a strong preference for open source typefaces developed specifically for screen use. This led us to finally choose Roboto, which has many visual characteristics in common with the original DIN. It’s also everywhere— at the time of writing, its page on Google noted that the Google Fonts API had served it up 33.3 billion times over the last week.

Roboto type specimen

Roboto type specimen

Choosing such a ubiquitous typeface is, in some ways, an unconventional move; often when you’re selecting a typeface to represent a brand, you look for something highly unique. We know that Roboto isn’t ever singularly going to be associated with Belvedere Trading, but we also know that its popularity is potentially a huge asset. And that is why you’ll see it as the primary typeface across our web products.

Case Study: Layout and Grid

Our users need to see as much information as possible at a glance, but that information still needs to be legible. When our users need to gain insights from data visualization quickly, scrolling through a page to find a specific chart with a specific data point is too time consuming. Typically, a designer can solve the problem of information overload by being judicious with what features and visualizations they choose to surface, making use of traditional approaches to visual hierarchy. For our simpler apps, we include holy grail support to accommodate that approach.

A preview of our styleguide and holy grail layout support

A preview of our styleguide and holy grail layout support

However, in the case of many of our web apps, the traditional concept of what information lives ‘above the fold’ is flipped on its head. Our more information-dense apps might use browser technology, but from a UI perspective, they don’t look or feel like what one might typically find in a browser. In many cases, this has meant that we have had to re-examine the traditional grid, which has its roots in print design. The modern, screen-based incarnation of a traditional grid system is, of course, often invaluable when implementing responsive design, so we do still have support for bootstrap’s column grid (Margin is a layer over bootstrap, after all). That said, our needs differ in that many of our apps are designed solely for desktop use. A grid with its roots in static print on a page might not always be well suited to a dynamic application, and it especially doesn’t always fit an environment where the user might be configuring some of the layout themselves.

A typical typographic grid, which was originally developed for print layouts. These grids were later modified to accommodate design for the web (courtesy of 'Thinking with Type')

A typical typographic grid, which was originally developed for print layouts. These grids were later modified to accommodate design for the web (courtesy of 'Thinking with Type')

This has led us to develop an additional, highly un-opinionated, flexible grid system meant for desktop apps with views where the user has some control over the layout, or the information displayed is constrained within the confines of the window. Grids don’t need to be one size fits all.

Using our grid will feel more like using flexbox than a typographic grid, and that’s by design. Whereas a typical grid layout is deliberately rigid, cells in our new grid system grow vertically and horizontally. Our additional margin and padding classes serve as gutters and provide structural support and visual regularity. When pairing these margin/padding classes with the specific flexbox features we choose to expose, we now have a DOM tree-dictated grid. Our new grid allows us to think about our views and prioritize what information we display in terms of the space available in the window at any given time. What this means for our user is that they don’t have to spend time rooting around for crucial information; it’s displayed predictably.

A visual designer will readily tell you that design is just as integral to the functionality of a product as its features. Anyone who’s experienced the delight of using a cohesive user interface (or, frankly, the frustration of an unconsidered one) understands that software is at its most invaluable when it is intuitive to use. Software is built by and for humans (at least, for now), and that’s why we’re focusing on building software with people in mind.


A Software Defined World

The Beauty of a Software Defined Data Center

Generally speaking, data centers have been custom built, manually managed and lack uniformity of physical resources.  They consist of proprietary devices that have changed over the years.   For many years, network and storage vendors were way behind the times in regards to automation and didn’t really innovate much.  While you could automate a server build, in order to monitor and  deploy software to any commodity hardware you still had to configure the network and storage by hand, or gamble and use kludgy expect scripts and hope nothing went wrong.  You had to know where a server was plugged in and hope your information was right or disaster could strike.

These days your infrastructure is finally catching up to your software development practices on a large and generally available scale.  You no longer have to be Google or Facebook with custom devices to get manageability and programmability in an easily repeatable fashion.  Although there’s no question that this clearly points to virtualization, any company that cares about ultra high performance and ultra low latency has to manage a large footprint bare metal servers as well.  Let’s look at how we can manage all the infrastructure pieces to have the ability to spin up pristine autonomous systems.


If you’re an experienced Systems Administrator or Operations Engineer, over the course of your career you’ve probably developed a series of tools with scripts to monitor performance, provision, and manage all the unique systems you’ve encountered in a variety of environments over the years.  You also likely have a great neck-beard you’ve been growing nearly as long.  You know how to login to any console or system and tweak just the right knobs needed to fix applications, network issues, performance issues or anything else you run into.

For the longest time, systems administration involved managing a bunch of individual servers as special snowflakes; servers existed in a specific environment, hosting a specific tool and only the necessary tweaks were applied.

Over the past few years, IT and Operations has been moving away from this model.   The same type of server is managed and configured in the same way for all environments.  Configuration management tools such as SaltStack, Puppet, and Chef are used to make configuration deterministic and repeatable; servers are to be treated as cattle and not pets.

This is all really great – it’s really easy to configure a server with Salt once it’s built – but building a server, especially bare metal, can still be a hand held automated process.  It involves using Foreman (as we do, but you could use Puppet Enterprise, Cobbler, Fully Automated Installer (FAI) or MAAS) to PXE Boot, run discovery, automate a preseed/kickstart, and fire off configuration management.  A more advanced option might include NFS/SAN booting a server off a known base image such as the interesting yet underutilized VMWare AutoDeploy.

Of course in the software defined datacenter we also need to use virtualization.  It makes resources easier to manage and fully utilize.  At Belvedere we're mostly experimenting with KVM and oVirt (opensource RHEV)for features like:

  • SR-IOV NICS that allow development teams to test kernel bypass and other more advanced features
  • VM CPU and IO prioritization
  • Ease of Administration
  • Access to low latency data feeds and connective.
  • Low cost of entry

If you combine all these tools together you can programmatically build and create new baremetal or virtual servers.  Such tools can take an inventory of available resources and build an entire environment in mere hours.  If you get really fancy you could even have robots in the data center racking new servers on demand.


Servers all have different needs for network connections.  Is this an LACP or trunked interface?  What VLAN(s) does it need to support, what’s native?  What port(s) is this server connected to on the switch? What’s the topography of the switch?  What of the many network routing protocols (BGP, eBGP, OSPF, IGRP or IS-IS) are in use for this new network? It used to be that your friendly network engineer or datacenter technician would need to provide all this information, setup new VLANs, enable routing, etc. before you could build a new network or server.

Now, we have standards like LLDP or CDP that are enabled everywhere.  You can know how a server is connected and have standard information about how this type of server is setup.  We now have fancy API’s like Cisco NX-API, Arista eAPI or Junos REST API.  Utilizing these API's you can query switches, look at the current state of affairs, programmatically map a network and generally discern everything you need in order to create something new (network, connection, etc.) without duplication – maybe with a few rules about IP address and ranges for different areas.

We also have truly software defined solutions such as VMWare NSX, AWS VPCs and Virtual Switches that we can use and plumb together programmatically.


Until recently, storage vendors have been living in the past with storage controllers that were hard to manage with limited open standards. Every new tool you wanted would cost a lot of money and make life only slightly easier.  Supplied tools such as HORCM for replication were clearly still straight out of the 1970’s in 2005.  You had to have a fiber channel network deployed and connected.  Upgrades required a forklift and long outages with a lot of risk.

All that’s changing now. Upstart vendors like XtemIO Pure, Nimble, Kaminaro and SolidFire gave the classics a run for their money.  They have easy to use and manage platforms.  They support easier to integrate standards like FCoE or iSCSI that require no additional infrastructure.  They have the ability to snapshot existing LUNS while reducing the amount of required space.  They have great dashboards to monitor and track ongoing performance.  You can safely and transparently move LUNS and data between controllers. We even have truly software-defined solutions such the can run on commodity hardware such as VMWare vSAN, Ceph, Gluster and a handful of ZFS based products that offer most of these features as well, although sometimes involving steep learning curves.

Generally, storage has come a really long way in the last 10 years.  All this is great because you don’t need a dedicated team of storage administrators for modern storage platforms.  Modern storage platforms also all have the most important features for a software defined datacenter, an API that can be used to manage connections, initiators, targets, snapshots and clones, which enables easily and programmatically controlled storage.

Putting it All Together

So what good is all of this?  Developers and QA often want it all and they want it now.  If you’ve ever worked in infrastructure or operations you know how true this is: "I need a copy of this database", "I need a totally isolated environment to develop these 5 features",  "I need a full QA environment for this hotfix that needs to go out tomorrow!", "Oh, and in 10 days we’ll stop using it, resources will be wasted, but we won’t tell you..."  All the great advances in infrastructure now make it possible to now manage all these types of requests in an automated and repeatable fashion.

This is why at Belvedere we’re developing the tool we're calling Hydra. Hydra will help Belvedere dynamically provision and deploy subsets of technical systems in new, existing, and time boxed temporary environments very quickly.  We hope to

  1. Improve developer workflow by providing a mechanism for dynamic deployment of isolated application in new, existing, partial and temporary environments
  2. Improve automated integration testing by providing stable, consistent environments in which these tests can be run
  3. Remove shared environment stability for manual QA testing.
  4. Improve production deployment by removing the need for manual configuration of services/clients

In other words, by programmatically utilizing modern compute, network and storage capabilities, we’re implementing tools to make it possible to quickly manage production, multiple QA and development environments.  And for fun we're also including the ability for every developer to build complete sprint long custom environments, with a single command.

So what will Hydra do?

  • Need a sanitized copy of the prod database?  Ok, but we’ll automatically tear it down at the end of 1 or 2 sprints.
  • Need an environment of 10 servers with different purposes and different uses, some requiring baremetal, others living on a VM?  No problem.  Hydra will build and manage the full life cycle of an environment.
  • Tear down unused resources and notify people of expensive underutilized resources.
  • Build you a private network with DNS, configuration management and custom application deployment.
  • Keep track and manage what resource you have,what branches you’re working off and allow continuous integration without impacting the rest of your development team.
  • Keep you from connecting to the wrong environment and developing in prod by mistake.

Most importantly, we'll have a quality inventory and know what's available and what you've allocated.  We can charge back your team for just what you need and use, and we'll never overallocate resources.  We'll also be able to manage necessary resource and look for patterns in growth without just throwing more and more hardware at the problem.

We’re looking forward to a beautiful new development paradigm.
